Review runs report setting to set how edging lines are shown on a pattern

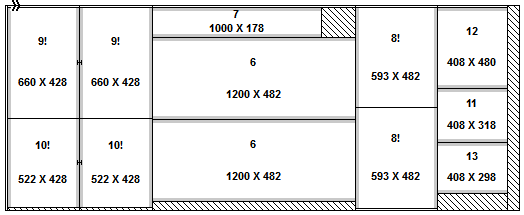

The pattern display can be set to show which part edges are to have tape edging applied.
Check / uncheck the box to set this parameter.
-
Show edging
lines
See:
Report / Export settings - Options (preview and patterns)
Notes
- Rotated parts are assumed to be rotated 90 degrees clockwise and their edges are displayed accordingly.
- Edging lines do not appear on very narrow parts
- Also applies to printed patterns
- When adding new parts in the pattern editor, edging selected for the new parts may not be displayed until the modified run has been saved and recalculated.
