Produce printed labels or forms
To print labels or forms, choose the type of data, select the label style and choose the run to print from. At the Main screen:-
● Select: Form/label print
or
● Select: Form/label preview
Choose the type of data to print from the selection dialog, for example, Quote/Orders, Part lists etc.
(For labels there is a further option: Selection. This allows specific patterns or labels to be selected and printed)

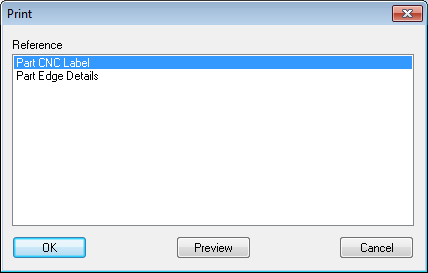

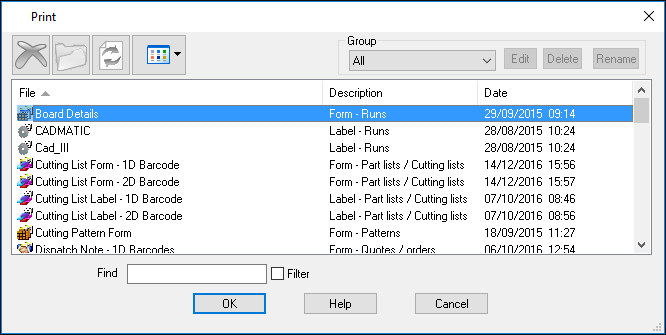

The program prompts with a list of Design (template) files for that type of data:-
● Select design file
● Select OK to print
Program either displays a Range dialog to select the range of items to print (e.g. Part lists, Cutting lists) or for Forms and Labels for Optimised data (runs) shows the Batch screen.
● OK to print (Continue at Batch screen)
In some cases it can take a few moments to assemble the data and the message 'Generating data - please wait' is shown.
Before printing the program prompts with the standard Windows Print dialog - use this to set printer preferences.

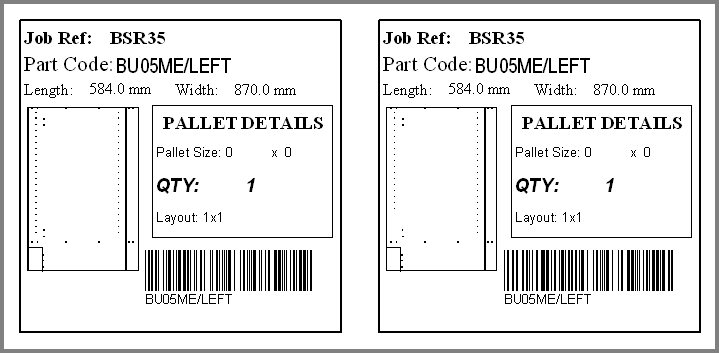

The following example shows a preview of printed labels:-

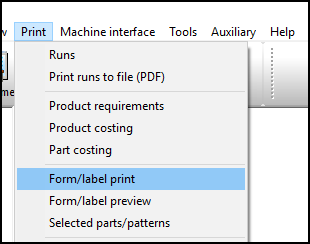

These options are also available on the Print toolbar, for example:-
To print labels from the Review runs screens see: Review runs - print labels
