Optimising parameter to set a ratio for taking recuts
Applies when taking recuts using a separate recut device
- Enter a value for the ratio

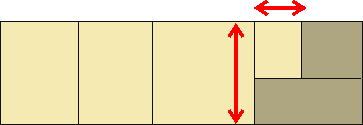

For a recut the part length (recut length) and strip width must be greater than or equal to a fixed ratio
Ratio = Maximum Strip width / Recut length
See: Other recut devices |
Example
Proportion (ratio) = 1.40
Max. Strip width = 420 mm
Recut length = 300 mm
420/300 = 1.40 = Ok
The ratio is typically used to avoid recuts which produce thin wide parts -these can cause problems for clamping because of the short length.
|
