Optimising parameter to set the number of the information box containing a value for the throughfeed direction
Applies when taking recuts using a separate recut device
- Enter the number of the target information box e.g. 15
This parameter points to the information box that contains the value for the throughfeed direction at edgebander.
Typically the information box required is set as a 'User defined' information box and the appropriate values entered at the part list.
See: Other recut devices |
Notes
- If an information box is not set up for this value - a box can be set up via the 'Information box' parameters.

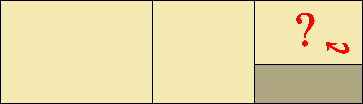

- The target information box must contain a value indicating the orientation of a part in a recut. This ensures the part arrives at the edgebander in the correct orientation. The allowed values are:-
0 - part is NOT rotated in recut
1 - part is rotated in a recut
|
