Single quantity offcuts with unique names

System parameter to set how offcuts are identified

Typically where there is a stack height of more than one the offcut label applies to all the similar offcuts in the stack. For example with a stack height of 2 the offcuts are labelled as follows:-

Label           Qty

X00021/0001      2

X00021/0002      2

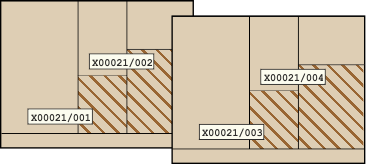

For some production methods it is important any offcuts have a unique code and patterns with offcuts are forced to a run quantity of 1. This produces a set of similar cutting patterns but each producing unique offcuts (as shown above).

Label           Qty

X00021/0001      1

X00021/0002      1

X00021/0003      1

X00021/0004      1

To work in this way check this option.

single quantity offcuts with unique names

Notes

- The offcut name is based on the run number, pattern number, and location in pattern.

- Duplicate offcut sizes are NOT aggregated
