Send results (cutting instructions) to Homag Sawtech [Espana] saw types
The program can be set up to transfer data to other proprietary saws.
Saw |
Transfer mode |
Single Homag Sawtech CH06/CH10/CH12 saw and NC-16 controller |
7 |
Single Homag Sawtech CH06 saw and NC-16 controller |
7 |
Single Homag Sawtech CH04/CH10/CH12/CH03+ saw and NPS400v2xxx/IPC/VIC800S CNI |
7 |
Single Homag Sawtech CHF320/CHF41/CHF51/CH03+ saw with PC controller (NPS400 V3xxx/Ilenia) |
7 |
Before transfer make sure that a Saw transfer parameters are set for this link (at the main screen: Parameters - Saw Transfer parameters)
At the main screen:-
● Select: Machine Interface - Transfer to Saw
● Select the required link from the menu choices (e.g. NPS 400 V3013)
● Select: Transfer to Saw (or Transfer to Saw buffer if buffered transfer is set)
The program displays the batch screen showing the runs to be transferred
Select
the 'continue' marker

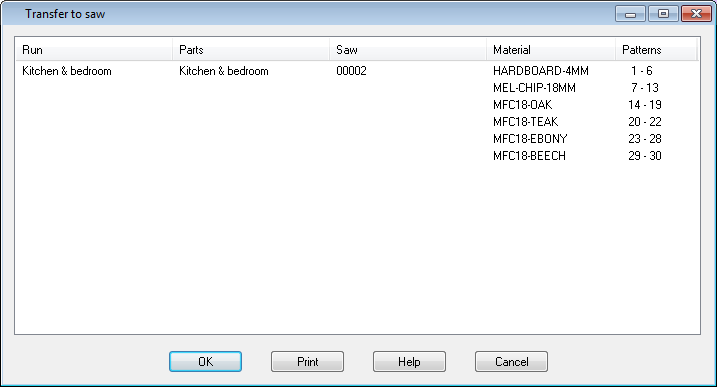

The program shows the details of the transfer.
● Select OK to continue
The information shown:-
Run number
Part list name
Name of file transferred to saw
Material code
Range of pattern numbers covered by file
