Form and label design - Overview



Create templates for forms and labels





Design a variety of templates for forms and labels.



Forms - typical forms are invoices, worksheets, despatch notes, run summaries, part lists, product requirement lists etc.

Labels - labels can be designed both for use in the office and for printing labels at the saw and are typically labels that identify an individual part or product.



At the main screen:-



 Select: Tools - Form/label designer

 Select File - New Form or label

 Select a design type from the selection dialog



Select the type of form or label required:-



Quotes / Orders

Product requirements

Product explosion

Part lists / Cutting lists

Cutting patterns

Runs

Saw (for labels only)

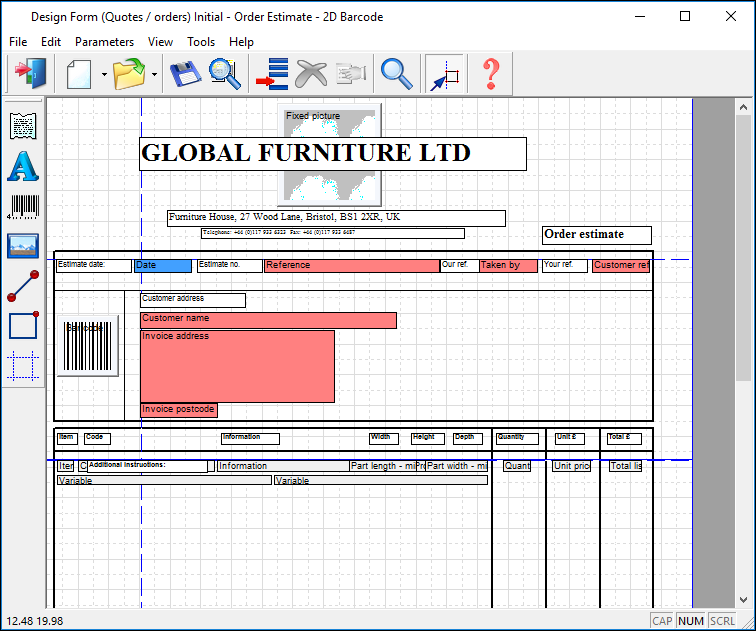

The program moves to the Form designer screen.







Creating a template (design)



It is best to experiment with Form design and get familiar with the way it works before committing to a particular design or set of designs. The demonstration data includes several different forms which can be copied and used as a starting point.



To design a form:-



 Use the Designer to create the page layout

 Use the objects on the Designer to add data to the form



The program makes data available via the form design objects and the type of form being designed. For example when designing forms for a Part list - the part list data (part code, length, width, quantity etc) is available) , when designing forms for Patterns the data from an optimised run is available (pattern number, run quantity, part quantity produced etc).



The design screen operates in a similar way for each type of design.



Printing forms or labels



To print a label or form, at the main screen:-



 Select: Form/label print



Form and label parameters



Use these values to set the overall features of the form or label, for example, the label size, number of labels across, page size for a form etc.



Form designs - location



The Form and label designs are all stored in the 'Path for data' set in system parameters. This allows designs to be shared between users





Notes



- Where the label is designed for the saw  the design options are automatically adjusted to match the capabilities of label printing for each saw.



- Also use Form design to produce fully customised reports to add to the standard summaries in Review runs.



- The menu options shown and the fields/data available depend on the modules in use.
