Review runs report setting to set how the saw blade thickness is shown on patterns
A typical saw blade is relatively small compared to the overall board size and it is often clearer to show the saw blade thickness as a single line (not to scale).
- Check / uncheck the box to set this parameter
Saw

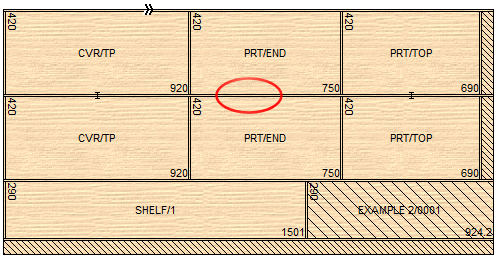

blade to scale
However, in some situations it is useful to set a relatively large saw blade thickness to allow for future operations on the part (for example where the parts are laid on a press and re-trimmed in a later operation). In these cases it is helpful to show the saw blade thickness to scale so that there is an accurate pattern drawing.
Editing patterns - saw blade thickness is not shown to scale when patterns are edited in pattern amendment.
Trims - trims to the boards (rip and cross cut trims) and internal trims for the head portions of the boards include the saw blade thickness and are always shown to scale.
See: Report / Export settings - Options (preview / patterns)
