Options at 'Review runs' to change report content
The report layout on-screen and for export can be customised with these settings. A set of default values can be used or changes can be made separately for each report and each export. The 'Preview' reports cannot be exported.
- Move to the report:-
- Select: Settings - Report settings
- Select: Layout tab

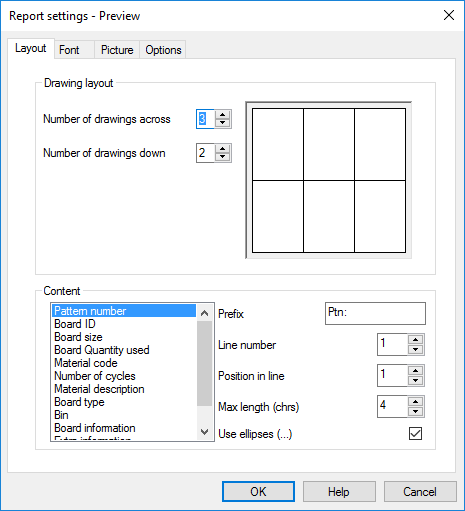

The Report settings dialog is shown.
Use the drawing layout to set the number of thumbnail pictures shown on a page.
The fields available on the report are fixed and shown in the 'Content' pane. For each field set whether the field is used and if so the position of the field.

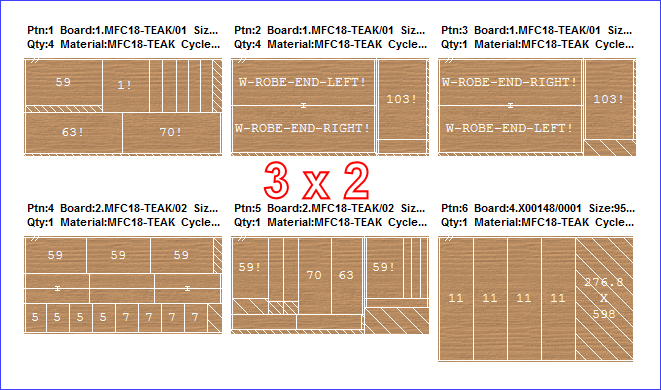

The following is an example of a 3 x 2 layout with most fields used.
Content
This box shows the items available for the report. Click on an item and use the values at the left to set up how the item is displayed.
Notes
- The Drawing layout and Content options are not available for the default report settings dialog - but the arrangement chosen for each of the reports (pattern preview, machining preview, nesting preview, destacking pictures) is stored between sessions.
- On 'preview type' patterns Zoom alters the number of patterns across and down
See: Report / Export settings - Overview
