Review runs setting to set whether the part alignment is shown for nested patterns

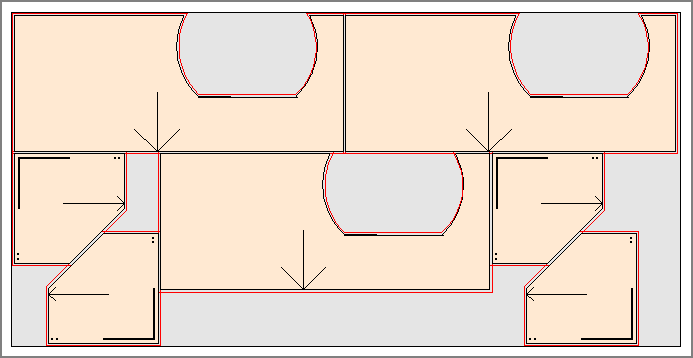

The part orientation (shown by an arrow) can be included in the pattern drawing.
An arrow pointing away from the centre of the part shows how the part is aligned on the board. The line runs to the 'top' of the part and shows how much the part is rotated.
- Check the box to show part orientation
Show
part orientation
See: Report / Export settings - Options (machining / nesting)
Notes
- Only applies for Machining library format (this is set in System parameters)
- The part length and width are defined by the columns in the part list
- Orientation is shown on both full patterns and on the pattern preview (thumbnails)
- Existing runs need to be recalculated to show the change
