Settings at 'Review runs' to change report options
The report display on-screen and for export (for machining and nesting patterns and drawings) can be customised with these settings. Changes can be made separately for each report and each export. There is a more restricted set of items for export as not all the on-screen options apply to export. Machining preview and drawings cannot be exported.
- Move to a nested pattern, preview, or machining drawing or machining preview.
- Select: Settings - Report settings (or Export settings) - Options

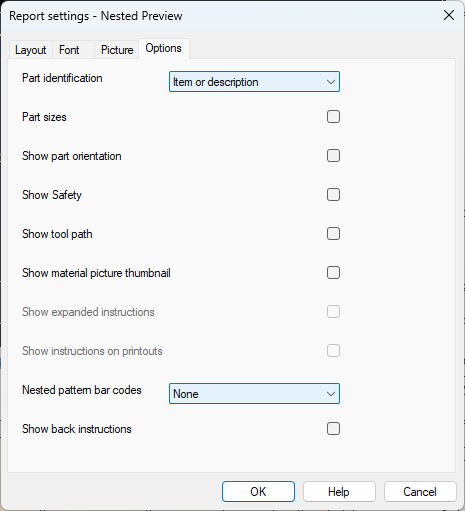

For Nested preview the options are:-
Use the settings to adjust how patterns are shown, for example, 'Show part orientation' places an indicator on each part to show whether the part orientation in relation to the board is 'length to length' or 'width to length.
For some instructions such as 'Show safety' the items refers to Parts when the report is a Machining preview or Machining drawing and Patterns and where the report is a Nested preview or Nested patterns.
For Nested drawings the options are:-"
See the topics below for details on each setting.
Show material picture thumbnail
Show instructions on printouts
