Review runs setting to set whether a printed bar code is included on nested patterns
The pattern display can be set to include a bar code.
Select the type of bar code from the list box
The bar code is Code39 format and contains the run number and pattern number and is placed beneath each pattern on the Pattern Preview and Pattern drawing.
The options are:-
None
8 character
8 character.nc
9 character
14 character
9 character bar code

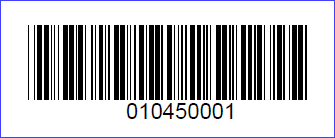

For Nested patterns the format is: A 5 digit run number (or name) followed by a 4 digit pattern number. e.g. 010450001
14 character bar code
The format is an 8 digit run number and 4 digit pattern number separated by '/P'. e.g. 00001032/P0004
8 character bar code
This is based on a 5 digit run number and a 3 digit pattern number, for example:-
Run 00005 Pattern 2 is: 00005002
8 character nc bar code
This is the same as the 8 character bar code with just .nc added to the end, for example
Run 00005 Pattern 2 is 00005002.nc
See: Report / Export settings - Options (machining / nesting)
Notes
- Bar codes only appear on Printed reports
- Run numbers and names are truncated or padded where necessary to match the format
- Bar codes are only displayed for pattern numbers up to 999.
