Review runs setting to set the label shown for machining drawings/nested patterns
For nested patterns / preview
The text shown on a pattern for each part can be one of several different items.
Select an item from the list
The choices options are:-
Item number
Description
Piece number
Any information box

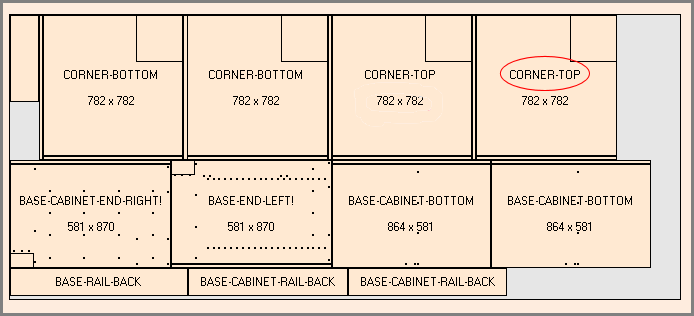

'Item number' - labels parts with the line number from the cutting list
'Description' - description column from the cutting list (names of the parts)
'Piece number' - label each piece in ascending order of machining, for example:-
Pattern 1 - 17 pieces - labelled 1 to 17
Pattern 2 - 10 pieces - labelled 1 to 10
(Nested patterns only with 'Sequence' set to pattern).
'Information box' - value in the information box is used for the label. The label can be a number or text.
Offcut text
Offcuts on nested patterns are labelled in the same way as those for optimising patterns. The choices of format are made in System parameters (Rules 2 tab).

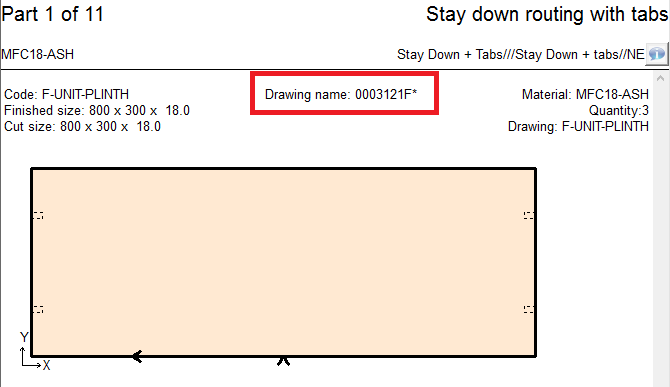

For machining drawings
The part identification field and value will be displayed in the middle of the first of the 3 lines of data above the machine drawing.

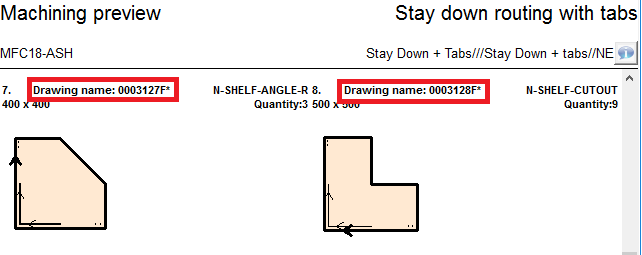

For machining preview
The part identification field and value will be displayed in the middle of the first of the 2 lines of data above each machine drawing.
See:
Report / Export settings - Options (machining / nesting)
